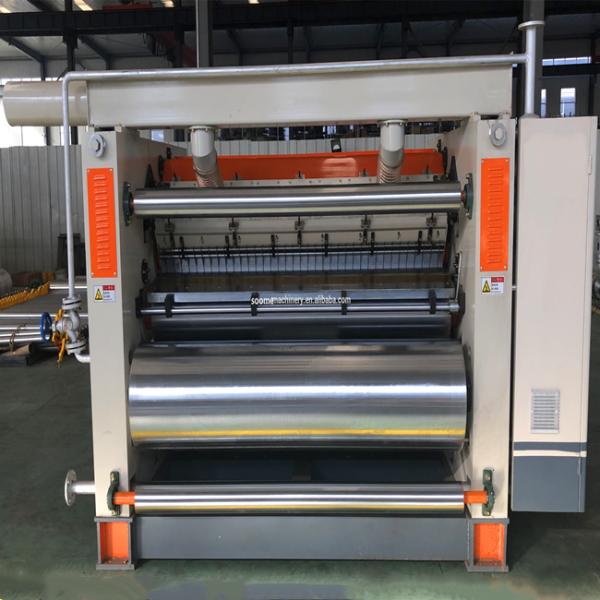

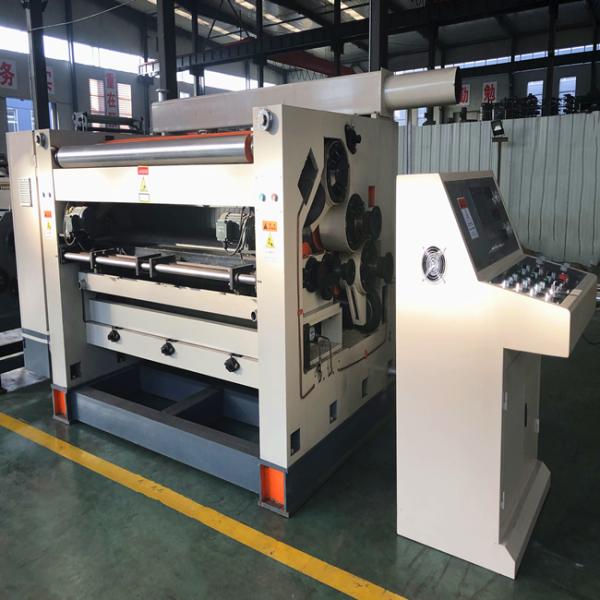

405C1 Fingerless Single Facer Corrugated Machine With Corrugated Roller
Model no: 405C1(360C1) adsorption single surface corrugating machine
1. Design speed of 405C1: 220m/min; design speed of 360C1: 200m/min
2. Effective width: 1400mm~2500mm
3. Corrugated roller 405mm 360mm
4. vacuum adsorption single-sided machine, the upper and lower corrugated roller using high quality 48crmo, heat treatment hardness HV1200 above, the surface by grinding tungsten carbide treatment.
5. The machine is equipped with top paper preheating roller and core paper tempering and tempering air injection device.
6. The upper and lower corrugated roller seat is designed separately from the whole machine, which can be hoisted and replaced for easy disassembly.
7. The rubber cloth is separated along the guide rail for easy cleaning and maintenance.
8. Pressure roller clearance is detected and displayed by pressure sensor.
9. Automatic adjustment of glue gap with production speed.
10. When the machine is stopped, the pressure roller is lifted. The pressure roller is driven by pneumatic and rotates intermittently.
11. Toothed belt transmission is adopted to reduce noise and maintenance cost.
12. adopt electric glue separation device, the adhesive cloth can operate independently when the host machine stops, to prevent paste drying up, and adjust the amount of digital glue by electric.
Main Features:
1. Simple structure in linear type ,easy in installation and maintation.
2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3. Running in a high automatization and intellectualization,no pollution
Glue Rollers:
| Diameter | Φ242mm |
| Processing Way | Surface of glue roller is grinded, then with 25 line rut type net dot,then plating chrome Surface of glue banlance roller is grinded then plating chrome |
| Control Way | Penumatic cylinder control of the Lifting Up-down |
| Glue Supply | Glue circulating system(storage tank+glue pump) |
Corrugated Rollers:
| Diameter | Down Roller:Φ320mm |
| Material | 48CrMo high quality alloy steel, rigidity HRC55°-58° |
| Processing Way | The surface of upper-lower roller is plating chrome, annealing, hardening and tempering, surface grinded |
| Fulte Type | (U/V) ACBEF |
| Material band or origin | Henan Jiyuan Iron & Steel Steel |
| Heating way of the reel paper | Steam heating |
Press Rollers:
| Diameter | Φ324mm |
| Material | medium steel (MS)45# |
| Processing Way | The surface is grinded then plating chrome, hardening and tempering(With Buffer) |
| Control Way | Penumatic cylinder control of the Lifting Up-down |
| Material band or origin | Zhong Yuan Special Steel |
Preheater Rollers:
| Diameter | UP Roller:Φ400mm |
| Material | seamless steel tube |
| Material band or origin | Tianjin Iron & Steel |
| All connected by flexible metallic tubes |
Common Spec:
| Width of Paper | 1600mm/1800mm |
| Style of Transmit cardboard | Vacuum Cover adsorbable style, Hight pressure Draw fan.with wind control Adjusting & noise deadening device. |
| Style of Control Roller | Pneumatic control the upper roller, pressure roller and glue roller |
| Lubrication | Anti-high temperature lube to lubricate the Corrugated Roller and Press Roller’s gears |
| Driving Way:With frequency inverter |
| Wallboard & machine stand: cast iron,thickness:200mm |
Common:
Working width: 1600mm/1800mm
Operation Direction: Left or right (decided by the workshop of customer)
Design Speed: 150m/min
Temperature: 160—210℃
Air pressure: 1.0—1.3Mpa
Corrugated Flute Type: UV or UVV
Spec of Motor:
Main Motor: 7.5kw Nominal voltage: 380V 50Hz Continuous (S1) working Type
Fan Motor: 7.5kw Nominal voltage: 380V 50Hz Continuous (S1) working Type
